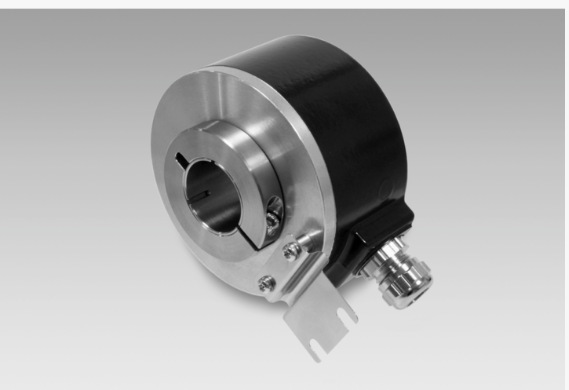

ITD 41 A 4 Y79Through hollow shaft ?20 to ?27 mm- Encoder with through hollow shaft ?20...27 mm
- Max. 10000 pulses per revolution
- Optical sensing method
- Mounting by torque support
- TTL or HTL output signals
- Cable output radial
-
Voltage supply
-
Reverse polarity protection
-
Consumption w/o load
-
Pulses per revolution
-
Reference signal
-
Sensing method
-
Output frequency
- ≤300 kHz (TTL)
- ≤160 kHz (HTL)
-
Output signals
-
Output stages
- TTL linedriver (short-circuit proof)
- HTL push-pull (short-circuit proof)
-
Interference immunity
-
Emitted interference
-
Size (flange)
-
Shaft type
- ?20 mm (through hollow shaft)
- ?22 mm (through hollow shaft)
- ?25 mm (through hollow shaft)
- ?27 mm (through hollow shaft)
-
Mounting kit
-
Protection EN 60529
-
Operating speed
- ≤5000 rpm
- ≤3000 rpm IP 65 (>70 °C)
-
Starting torque
-
Material
- Housing: aluminium, black, powder-coated
- Shaft: stainless steel
-
Operating temperature
- -20...+70 °C
- -20...+100 °C
-
Relative humidity
-
Resistance
- EN 60068-2-6
- Vibration 10 g, 55-2000 Hz
- EN 60068-2-27
- Shock 30 g, 11 ms
-
Connection
-
Weight approx.
|
